Lithe Audio Bass Management Setup

Optimised Settings for Clarity, Impact, and Efficiency

Bass management ensures each speaker plays only the frequencies it is best suited for, improving overall system performance and preventing distortion or frequency overlap. This is critical in 5.1.2 or 7.1 Dolby Atmos systems, where sound precision and clarity matter most.

Goals of Bass Management

  • ✅ Redirect deep bass to the subwoofer (LFE), which is designed to handle low frequencies

  • ✅ Protect smaller speakers from handling bass they can’t reproduce cleanly

  • ✅ Balance the soundstage, avoiding bloated or muddy audio from overlapping frequencies

Key Terms Explained

A. High Pass Filter (HPF)

Definition:
A high pass filter allows high frequencies to pass through to the speaker, but blocks lower frequencies below a set point.

Use Case:
Applied to main, centre, surround, or height speakers to stop them from playing bass they can’t handle.

✅ Why it's important:

  • Protects small speakers from distortion

  • Frees up amplifier power

  • Sends low bass to the subwoofer where it belongs

Example:
If you set a high pass at 80 Hz, the speaker will play everything above 80 Hz, and everything below will be rerouted to the subwoofer.

B. Low Pass Filter (LPF)

Definition:
A low pass filter allows low frequencies to pass through, while blocking higher frequencies above a set point.

Use Case:
Typically used to direct bass frequencies to the subwoofer and prevent it from trying to play midrange or treble.

✅ Why it's important:

  • Prevents “muddy” sound by avoiding overlapping frequencies between the subwoofer and main speakers

  • Ensures bass feels tight and blends naturally

📌 Example:
If the low pass is set to 80 Hz, the subwoofer will play only sounds below 80 Hz.

C. LFE (Low Frequency Effects)

Definition:
LFE is a dedicated bass channel found in surround sound formats (like Dolby Digital or DTS) that carries explosive, deep bass effects — like rumbles, booms, or thunder.

Use Case:
Only used by the subwoofer in 5.1, 7.1, or Atmos systems. The LFE channel is not redirected audio — it’s specific content created for bass.

✅ Why it's important:

  • Gives movies and games impact (e.g. explosions, drums, action scenes)

  • Must be played through a proper subwoofer for full effect

📌 Note:
In 5.1 or 7.1 systems, the “.1” represents the LFE channel — not the number of subwoofers, but a dedicated channel for bass.

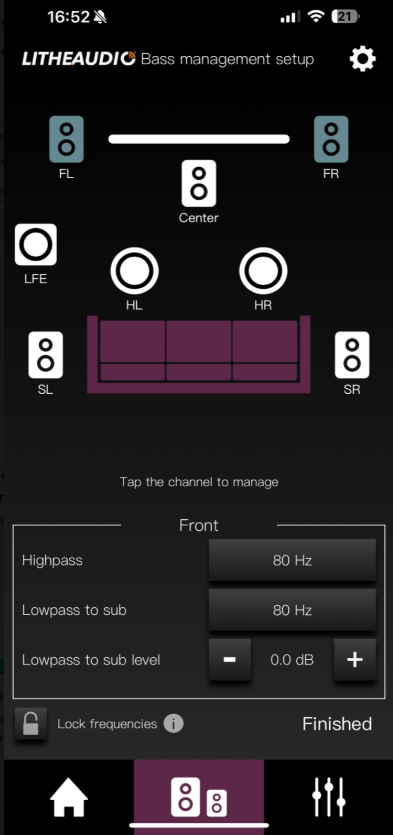

1. Front Left & Right Speakers (FL / FR)

  • Highpass: 80 Hz
    (Cut low bass below this; send it to the sub)

  • Lowpass to Sub: 80 Hz
    (Anything under this is sent to the sub)

  • Lowpass Level: 0.0 dB

✅ Why: Most bookshelf or in-wall speakers struggle below 80 Hz. This setting preserves clarity and offloads low frequencies to the subwoofer.

2. Centre Speaker

  • Highpass: 80 Hz

  • Lowpass to Sub: 80 Hz

  • Lowpass Level: 0.0 dB

✅ Why: Centre speakers are focused on dialogue. A higher crossover ensures they don’t distort from bass rumble, keeping vocals crisp and isolated.

3. Surround & Rear Speakers (SL / SR / RL / RR)

  • Highpass: 80 Hz

  • Lowpass to Sub: 80 Hz

  • Lowpass Level: 0.0 dB

✅ Why: These speakers are often smaller or wall-mounted. A high crossover avoids low-end stress and keeps effects spatially accurate.

4. Height/Atmos Speakers (HL / HR)

  • Highpass: 80 Hz

  • Lowpass to Sub: Off (or not needed)

✅ Why: Atmos height speakers reproduce directional and ambient effects. They don’t need low frequencies — prioritise precision and imaging.

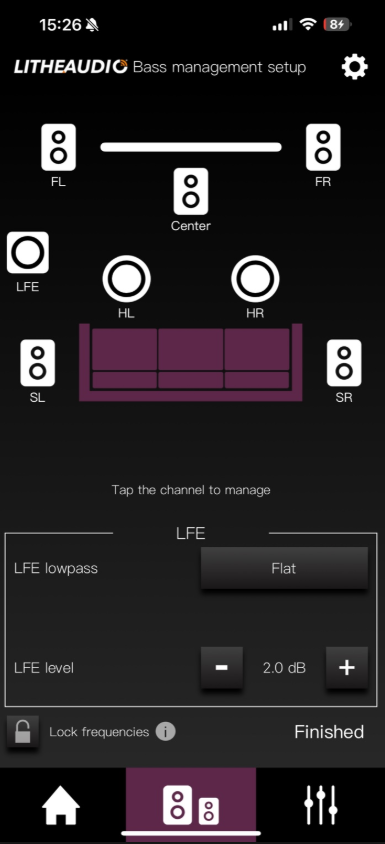

5. Subwoofer (LFE)


  • LFE Lowpass: Flat

  • LFE Lowpass Options: Leave as Flat, or set between 40–80 Hz only if you want tighter control

  • LFE Level: +2.0 to +3.0 dB (adjust to taste)

✅ Why: A quality subwoofer can handle the full LFE spectrum (up to 200 Hz). Keeping it flat ensures it receives all bass content — both redirected and native LFE from movies/games.

🔒 Pro Tip: Lock Frequencies

After optimising each channel, enable “Lock Frequencies” to prevent accidental changes.

Summary Table

Channel TypeHighpassLowpass to SubLFE/LowpassLevel
Front (FL/FR)80 Hz80 Hz–0.0 dB
Centre80 Hz80 Hz–0.0 dB
Surround/Rear80 Hz80 Hz–0.0 dB
Height (Atmos)80 Hz        Off–0.0 dB
Subwoofer (LFE)––Flat+2.0 to +3.0 dB
