What are the Inputs/Outputs of the Cinema Hub
What are the Inputs/Outputs of the Cinema Hub

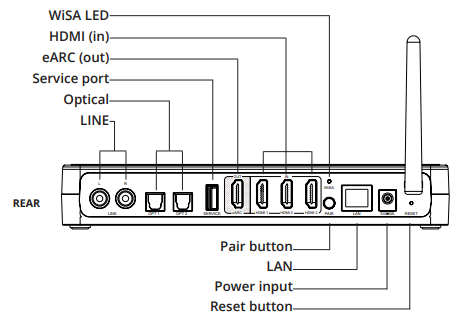

The Cinema Hub has variety or Optical and Analogue inputs please see below:
3x HDMI Inputs - Connect an HDMI
source using HDMI cable from the ‘HDMI (in)’
ports on the REAR of the Cinema Hub to the
correct port on the HDMI source using a HDMI
cable 1.4 or newer. Set input to “HDMI” using the remote.
eARC Output - Connect this to the TV, this shall show the OSD on screen display setup information
Easy switching between multiple HDMI sources and forward
to TV-screen with ARC or eARC (audio return channel)
Line - Any analogue source with LINE out can be connected to the Cinema Hub through the LINE
port on the REAR of the Hub.
Switch audio input to “LINE” using the remote to
playback audio.
Note: LINE can only support up to 2,5V rms
2 x Optical - Any source with optical SPDIF output can be
connected to your Cinema Hub through the
two optical ports on the REAR of the Hub.
Switch audio input to the chosen Optical port
using the remote
If you have any further issues please contact support@litheaudio.com
