How to Mount IO1 Speaker In a Corner

How to Mount IO1 Speaker In a Corner

In a Corner Application:

Ideal for any corner such as in the eaves or corners of rooms. You can mount horizontally or vertically.

​

1. Using the hole template, mark out the holes on the wall, make sure to check for water pipes or electrical cable before drilling holes for wall plugs (4 positions).

2. Attach the cables into the back of the speaker.

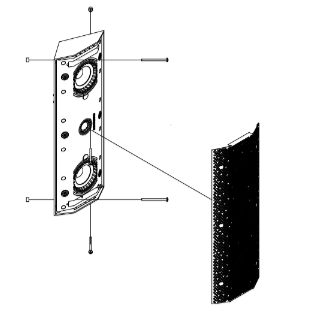

3. Remove metal grille (magnetic) and the 2 x rubber bungs as shown, insert the m4 x 90mm screws through the speaker.

4. Ensure to add the spacers 4 positions between speaker and wall bracket. Be careful not to over tighten the screws.

5. Refit the 2 rubber bungs and metal grille.
