How to connect WiSA Subwoofer hardwired to traditional AVR?

How to connect WiSA Subwoofer hardwired to traditional AVR?

The Lithe Audio 8" Subwoofer can work with any make or model of AVR via the line output, as well as providing futureproofing for WiSA setups.

To connect the WiSA Subwoofer to an amplifier AVR using the line output, follow the steps below:

1. Connect to Device - Connect line input with the processor or AVR line-output. If using multiple subwoofers, link them via line-out to line-in on the next subwoofer (Daisy Chaining)

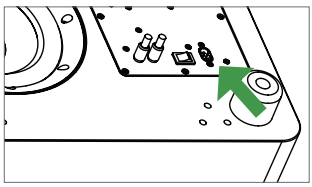

2. Connect Power - Connect the WiSA Subwoofer to the mains via the power lead provided and turn on at the wall socket and via the switch on the back of the subwoofer as shown



All set, after connecting the WiSA Subwoofer via line outputs, you are ready to adjust playback level, lowpass frequency and standby time to match your setup.
