How to connect WiSA Subwoofer to WiSA transmitter?

How to connect WiSA Subwoofer to WiSA transmitter?

The Lithe Audio 8" Subwoofer can work with any WiSA HT certified transmitter to enhance the Cinematic experience to another level.

To pair the WiSA Subwoofer with the transmitter, follow the steps below:

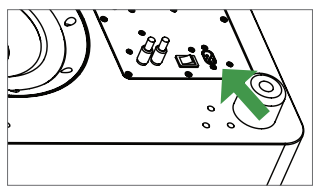

1. Connect Power - Connect the WiSA Subwoofer to the mains via the power lead provided and turn on at the wall socket and via the switch on the back of the subwoofer as shown

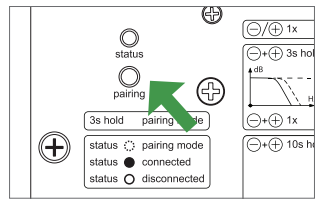

2. Activating Pairing Mode - Hold the pairing button for 3 seconds to activate WiSA HT pairing mode. The LED indicator shall flash white indicating pairing mode.

3. Pair with WiSA HT transmitter - Activate pairing mode/ associate mode in the WiSA HT transmitter. Check the LED on WiSA subwoofer changes from blinking state to solid state. This indicates successful pairing.

All set, after connecting the WiSA Subwoofer to the WiSA HT transmitter, you are ready to adjust playback level, lowpass frequency and standby time to match your setup.
