How to Connect Cinema Hub to the Home Network

How to Connect Cinema Hub to the Home Network

To Connect the Cinema Hub to Network follow the instructions below:

1. Using either Android or iOS Download Google Home App

Scan the QR Code below for direct access to the app.

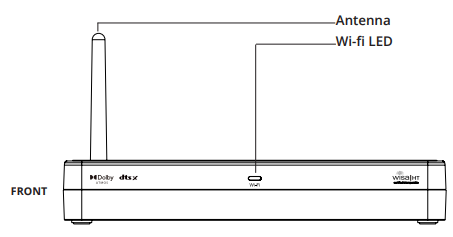

2. Power on the Cinema Surround Hub. The Cinema Hub is ready for the next step when the ‘Wi-Fi LED’ starts flashing rapidly on the front of the Hub, meaning it has entered ‘Wi-Fi Configuration’ mode.

3. Open the Google Home app and follow the instructions You will be guided through each step in the app

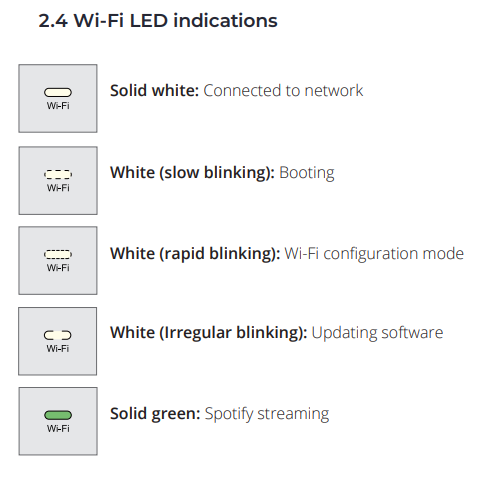

4. Wait for LED to turn solid White After finishing the setup in the Google Home app, the ‘Wi-Fi LED’ should turn solid white, signifying that the Hub is connected to the Wi-Fi and ready to stream

Once Connected this shall enable Airplay, Google Cast, Spotify Connect.

If you have any further issues please contact support@litheaudio.com
