How to use the Remote Control

How to use the Remote Control

How to use the Remote Control

Features of the Remote control are shown below :

                   Power Cinema Hub ON/OFF
                            The Cinema Hub can be turned ON or OFF using the ‘ON/OFF’ button.

                   Changing volume can be adjusted on the remote using the up and down ‘Navigation’ buttons when the OSD menu is not open.

               Mute The audio can be muted using the ‘Mute’ button.
                           Press once to mute, and press again to unmute

 SKIP/Play/Pause The audio stream can be started, paused, and tracks skipped, using the bottom three buttons.
                          This is only available for Bluetooth and Wi-Fi inputs

            Input selection Input can be changed using the remote by pressing left/right, when not in the OSD menu.
                        You can see the current input on screen or on the ‘Input Indicator’ LED on the remote

 Hide Bluetooth visibility
                        Hold PREV button for 3 seconds. When input LED blinks, Bluetooth is hidden and no new units can be paired.
                        Hold NEXT button for 3 seconds. When input LED blinks, Bluetooth is visible for pairing new units.

   Lock volume for specific input A volume can be locked for specific inputs.
                        Select the input and volume you want to lock.
                        Press and hold mute for 5 seconds until the input indicator blinks once.

NB: To unlock, choose the input you want to unlock and press and hold mute again for 5 seconds

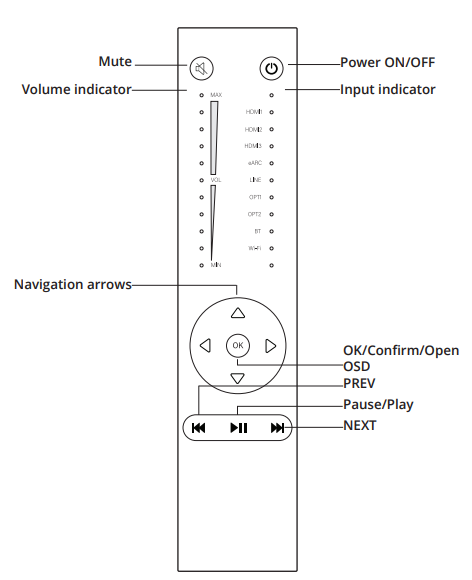

Remote Control Layout



If you have any further issues please contact support@litheaudio.com
